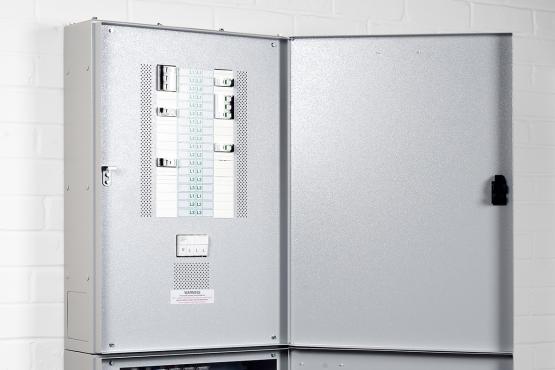

Modular Distribution Boards

Designed and built to BSEN 61439-2 to compliment the full range of our standard panelboard arrangements

  • Incoming devices either 125Apere or 250Ampere 4P on load isolators
  • Outgoing ways up to 63Ampere SP/TP High performance MCB 10kA BS 60898 15kA BS 60947-2 in B, C or D curve 1, 2, 3 and 4 pole
  • Fully type tested conditional short circuit rating of 25kA to BS EN 60439 when fed by MCCB
  • Isobar disconnection system ensuring unused outgoing ways are isolated
  • Sizes available from 4way to 24way
  • Two frame sizes covering the whole range
  • Full welded construction providing a solid structure for all industrial and commercial environments
  • 250A busbar rating busbar arrangement is fully encapsulated
  • Incoming capability bottom cable entry and top cable exit
  • Plug ‘N’ Wire Digital Multi-functional meters available, L2B compliance
  • Thermal imaging facility as standard with shielded access to all terminals without the need for isolation
  • Built to Form 2b type 2 separation
  • Front access
  • Wall mounted arrangements with wall mounting brackets
  • IP31
  • Standard Dimensions:

125-250 Ampere (Single Boards)

Up to 12way     1050mm H * 500mm W * 160mm D
Up to 24way     1450mm H * 500mm W * 160mm D

125-250 Ampere (Dual Boards)

Up to 12way     1050mm H * 1000mm W * 160mm D
Up to 24way     1450mm H * 1000mm W * 160mm D

  • Epoxy power paint finish to RAL colour RAL 7035
